Upper Steering Column Trim Panel, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removing

NOTE:

For reasons of clarity, the steering wheel is not shown in the illustration below. It is not necessary to remove it.

-- Release the steering wheel adjustment lever.

-- Pull the steering out and push is down.

-- Loosen the gap cover -2- from the mounts on the upper steering column trim panel -1- using the : 3409 .

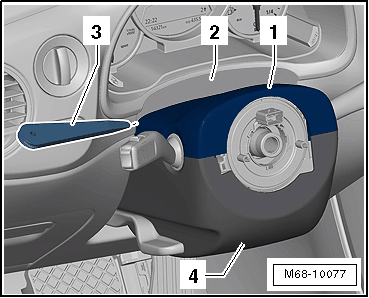

Fig 1: Identifying Upper Steering Column Trim Mounts And Trim Removal Wedge 3409

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

3 - Trim Removal Wedge: 3409

-- Loosen the upper steering column trim panel -1- and from the mounts on the lower steering column trim panel -4- using the : 3409 and remove.
