Overview - Front Center Armrest

WARNING: This page is about a different variant/trim than selected.

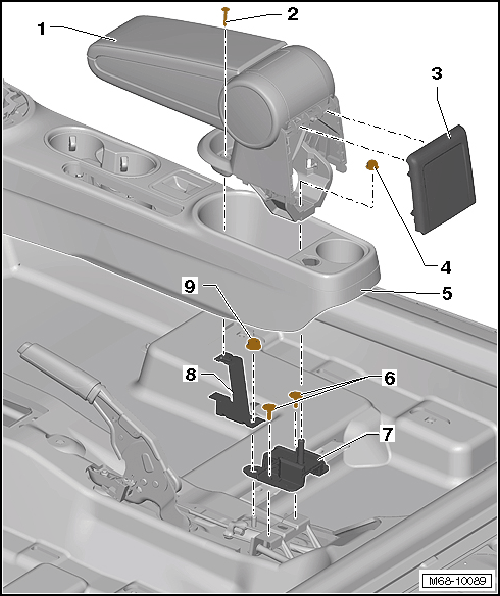

Fig 1: Identifying Front Center Armrest Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Armrest
- Removing and Installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
Trim Panel
Nut
- 15 Nm
Center Console
Bolt
12 Nm
- Follow the tightening sequence:
  - Tighten the bolt -Item ) OVERVIEW - FRONT CENTER ARMREST - List Item: Bolt.
  - Tighten the nut -Item ) OVERVIEW - FRONT CENTER ARMREST - List Item: Nut.
Support Base
Bracket
Nut
12 Nm
- Follow the tightening sequence:
  - Tighten the bolt -Item ) OVERVIEW - FRONT CENTER ARMREST - List Item: Bolt.
  - Tighten the nut -Item ) OVERVIEW - FRONT CENTER ARMREST - List Item: Nut.
