Front Center Armrest, Removing And Installing: Removing

-- Remove the trim panel -1- for the center armrest -2-.

Fig 1: Identifying Trim Panel And Center Armrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- (1.5 Nm).

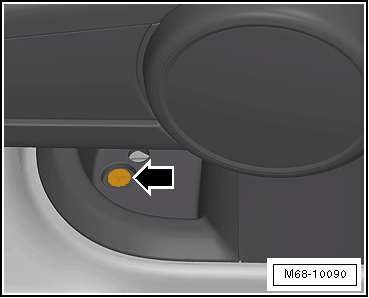

Fig 2: Identifying Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -1- (15 Nm) and remove the center armrest -2- from the center console.

Fig 3: Identifying Nut And Center Armrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
