Wind Deflector, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

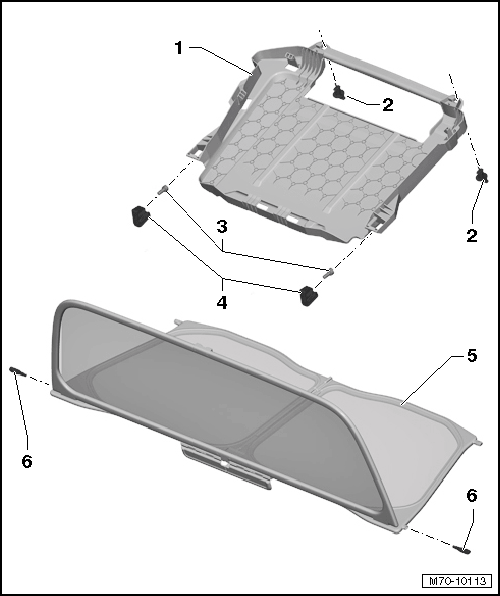

Fig 1: Identifying Wind Deflector Components Overview
GWWM70-10113Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Wind Deflector Mount
    • Installed inside the luggage compartment
  2. Knob
    • For locking and unlocking the wind deflector mount
  3. Bolt
    • 5 Nm
  4. Bracket
    • For the wind deflector mount
  5. Wind Deflector
  6. Pin
