Sun Visor, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the cover/retainer -2- from the sun visor mount -1-.

Fig 1: Identifying Sun Visor Mount & Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

It is not necessary to remove the screw -3- and the center support for the sun visor -2- if only the sun visor is being removed.

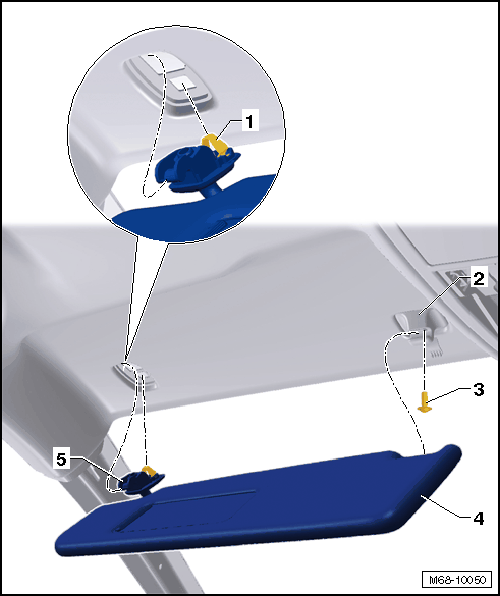

Fig 2: Identifying Sun Visor, Mount Cap, And Clip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the sun visor -4- from the sun visor center support -2-.

-- Remove the clip -1- from the sun visor center support -5-.

-- Remove the sun visor center support -5- and the sun visor -4-.

-- Open the cap on the sun shade center support -2- and remove the screw -3-.

-- Remove the sun visor center support -2- from the roof crossmember.
