Roof Grab Handle, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

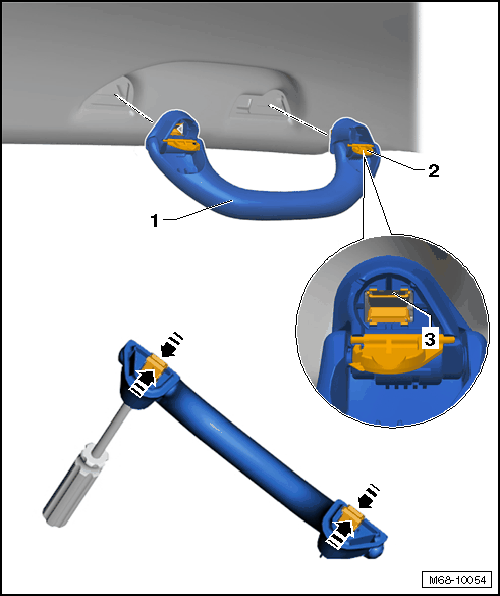

Fig 1: Identifying Roof Grab Handle, Caps And Mounting Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold the grab handle -1- and open the caps -2-.

-- Push the : T10518 all the way into the two metal clips -3-. This pushes together the metal clips -3- in direction of -arrows-.

-- At the same time loosen the grab handle -1- from the mount.

NOTE:

It is also possible to use a screwdriver to open the clips.
