Roof Grab Handle Bracket, Removing And Installing: Removing

-- Lower the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Remove the bolt -1- (4.5 Nm).

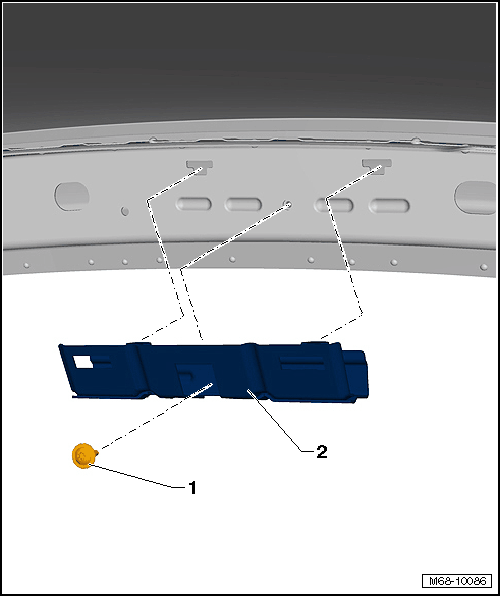

Fig 1: Identifying Screw And Slide Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Slide the bracket -2- upward and remove it.

Allocation of bracket installed. Refer to the Parts Information.
