Overview - Center Console Securing Bracket

WARNING: This page is about a different variant/trim than selected.

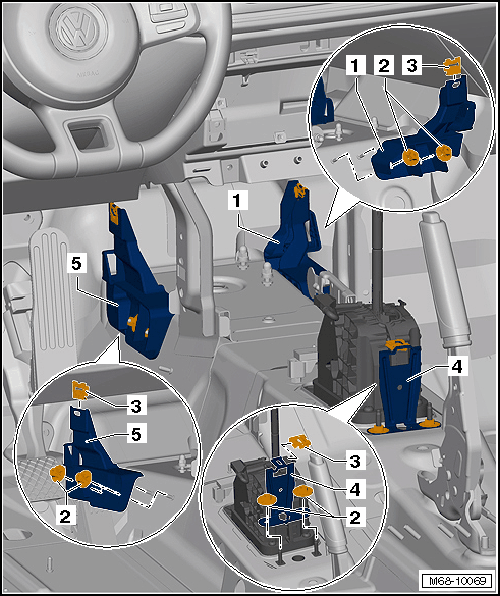

Fig 1: Identifying Center Console Mounting Bracket Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Front Securing Bracket
- Front right footwell trim panel securing bracket
- Removing and Installing. Refer to CENTER CONSOLE FRONT SECURING BRACKET, REMOVING AND INSTALLING .
Nut
- 2 Nm
Spring Nut
Support
- Center console support behind the selector mechanism
- Removing and Installing. Refer to CENTER CONSOLE REAR SECURING BRACKET, REMOVING AND INSTALLING .
Left Front Securing Bracket
- Front left footwell trim panel securing bracket
- Removing and Installing. Refer to CENTER CONSOLE FRONT SECURING BRACKET, REMOVING AND INSTALLING .
