Center Console Rear Securing Bracket, Removing And Installing: Removing

-- Switch off the ignition.

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the two nuts -3- (2.0 Nm) and remove the support -1-.

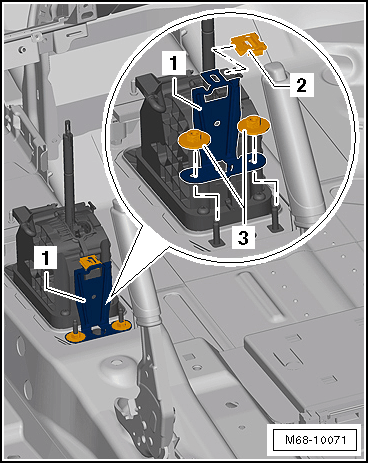

Fig 1: Identifying Nuts And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
