Center Console Front Securing Bracket, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition.

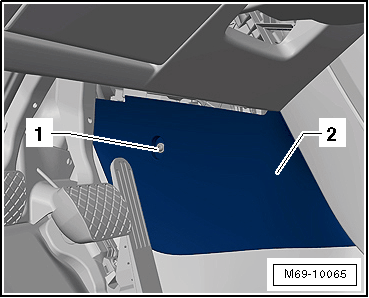

-- Remove the bolt -1- (1.5 Nm) and remove the footwell trim panel -2-.

Fig 1: Identifying Screw And Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the two nuts -2- (2.0 Nm) and the securing bracket -1-.

Fig 2: Identifying Nuts And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Removing the right securing bracket it identical.
