Center Console Front Securing Bracket, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

-- Install in reverse order of removal. Note the following:

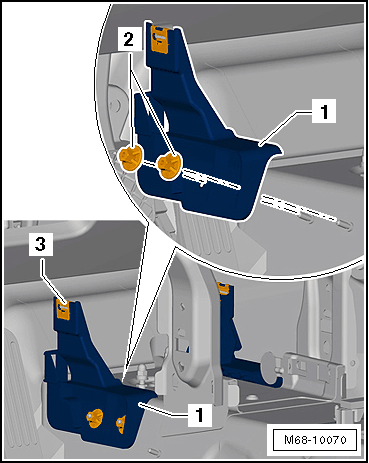

-- Check the spring nut -3- for damage before installation. Replace any damaged components.

Fig 1: Identifying Nuts And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

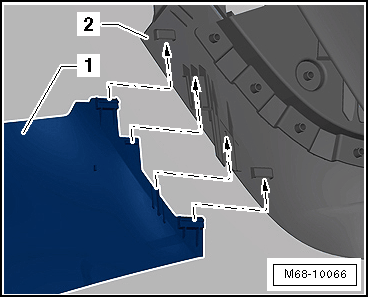

-- Secure the footwell trim panel -1- in the guides on the center console -2-.

Fig 2: Identifying Footwell Trim Panel And Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
