Adhesive Routing Change

WARNING: This page is about a different variant/trim than selected.

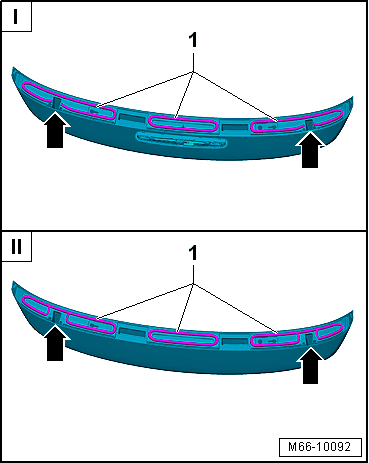

Fig 1: Adhesive Routing Change

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I -

Spoiler with old adhesive sealant routing

II -

Spoiler with new adhesive sealant routing

The routing of the adhesive sealant -1- on the spoiler has been changed in the area -arrows-.

When installing a spoiler the adhesive sealant -1- must always be applied according to the routing, also when reusing the old spoiler.

When reusing a spoiler with the >>old<< routing the adhesive -1- must be prepared in the corresponding area -arrows- for the first application of the one-part assembly adhesive with the new routing. Refer to When using a New Rear Spoiler .

Materials

NOTE:

Refer to the parts information for the material part numbers.

One-part assembly adhesive ¹⁾²⁾³⁾
Activator ¹⁾
Glass/paint primer ¹⁾
Cleaning solution ¹⁾
Primer applicator ¹⁾
Adhesive remover ¹⁾
Cutting Wire

¹⁾ Follow the manufacturer processing guidelines supplied in the packaging.

²⁾ Note the minimum curing time. Minimum Curing Time

³⁾ Heat according to manufacturer's instructions using the : VAG1939A .
