Overview - Spoiler, Convertible

WARNING: This page is about a different variant/trim than selected.

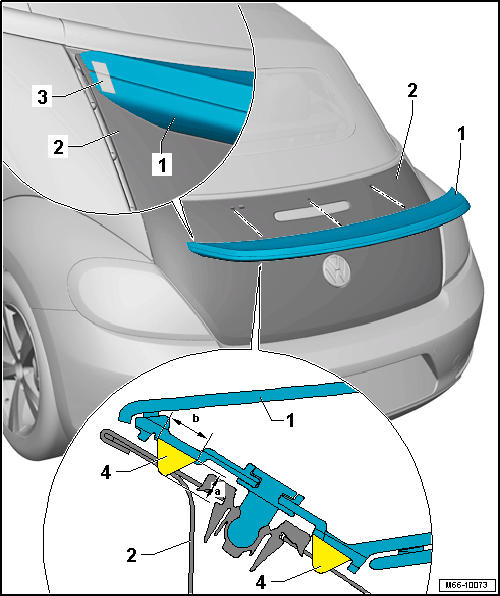

Fig 1: Spoiler Overview, Convertible
GWWM66-10073Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Spoiler
  2. Rear Lid
  3. Adhesive Tape
    • 2 strips for the side mountings for the rear spoiler
  4. Adhesive Bead
    • Bead diameter: Width -b- = 9 mm, height -a- = 6 mm (including residual material on rear spoiler and rear lid).
