Front Trim, Removing And Installing: Installing

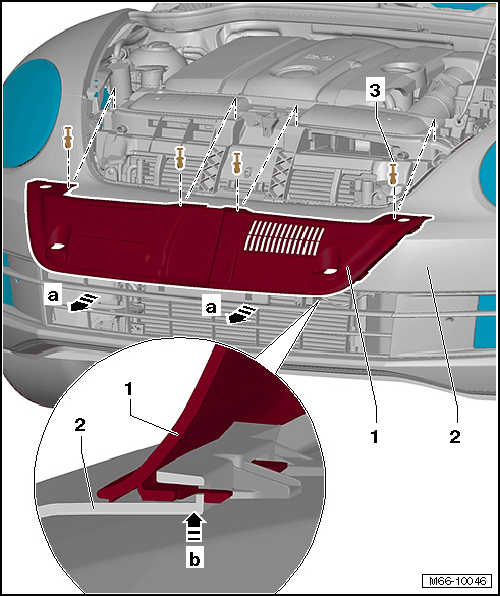

Fig 1: Identifying Front Trim And Front Bumper Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the front trim -1- into the front bumper cover -2- and into the lock carrier.

-- Push the trim -1- into the front bumper cover -2- -arrow b- using light pressure.

-- Install the expanding rivets -3-.
