Overview - Noise Insulation, Convertible

WARNING: This page is about a different variant/trim than selected.
NOTE:

There are different versions of the noise insulation depending on the engine version. Refer to the parts information for the correct allocation.

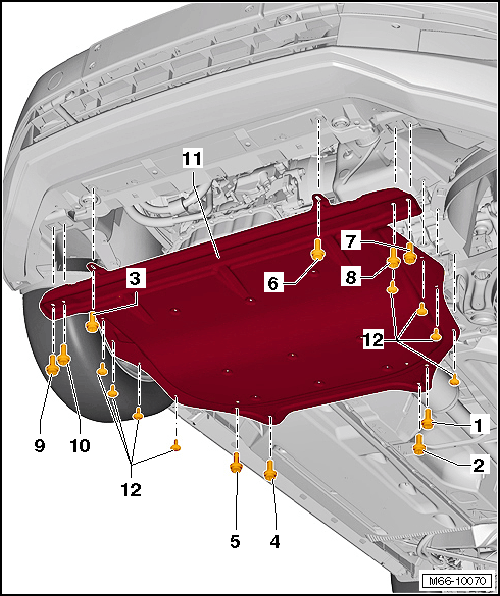

Fig 1: Noise Insulation Overview, Convertible
GWWM66-10070Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 1 through 10 -

    Bolt

    • 20 Nm
    • Tighten in sequence 1 to 10.
  2. 11 -

    Noise Insulation

  3. 12 -

    Bolt

    • 2 Nm
