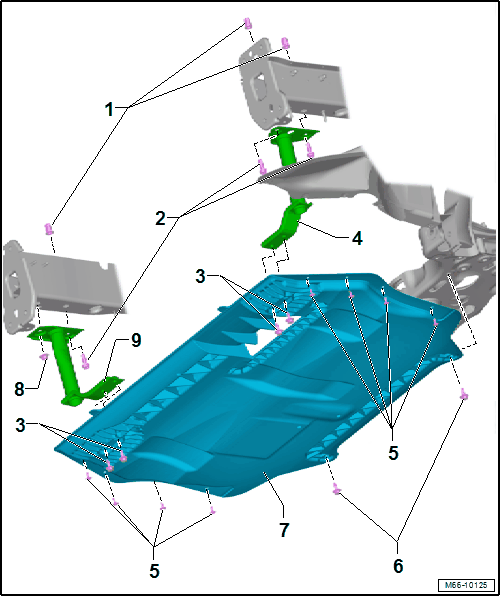

Overview - Impact Guard, Sedan
WARNING: This page is about a different variant/trim than selected.
NOTE:
Depending on the engine version, slight deviations must be considered when removing and installing.
- Pop Rivet Nut
- Allocation. Refer to the parts information.
- Quantity: 3
- Bolts
- 35 Nm
- Microencapsulated, to be replaced after every removal
- Allocation. Refer to the parts information.
- Quantity: 3
- Bolts
- 20 Nm
- Quantity: 4
- Left Retaining Bracket
- Bolts
- 2 Nm
- Allocation. Refer to the parts information.
- Quantity: 4
- Bolts
- 20 Nm
- Quantity: 2
- Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
- Nut
- 20 Nm
- Allocation. Refer to the parts information.
- Right Retaining Bracket
