Impact Guard, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.
NOTE:

Depending on the engine version, slight deviations must be considered when removing and installing.

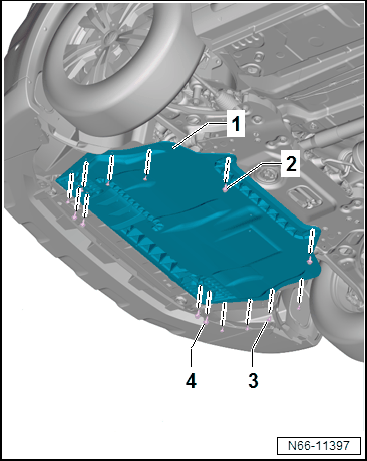

-- Remove the bolts -2, 3 and 4-.

GWWN66-11397Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the impact guard -1- downward.
