Side Sill Trim Panel, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.

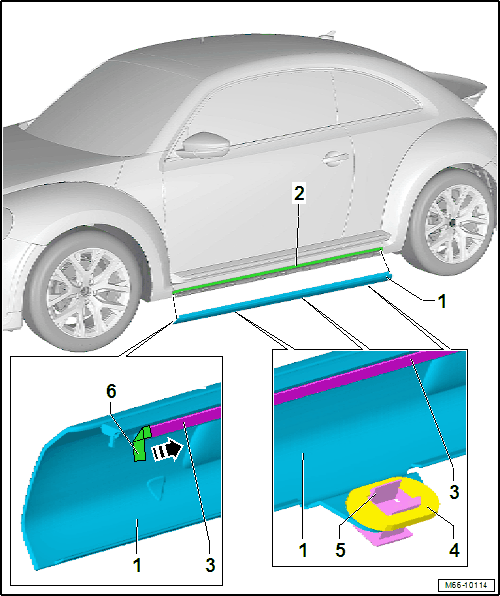

-- Clean the area -2-. Refer to Installation Preparation .
-- Check the expanding clip -5- and seals -4- for damage and replace if necessary.
-- Align the rocker panel extension -1- between the trim for the wheel housings.
-- Remove the pulling aid -6- with the protective film from the adhesive tape -3- in direction of -arrow-.
-- Secure the expanding rivets -5- with the seal -4- on the side sill.
-- Forcefully press the rocker panel extension onto the retaining strip near the adhesive tape -3-.
