Intake Manifold Sensor -GX9-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

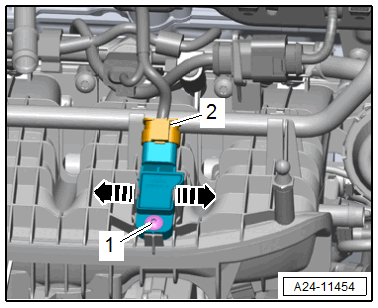

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

-- Release the catches in direction of -arrows- and remove the Intake Manifold Sensor -GX9- from the intake manifold.
