Fuel Pressure Sensor -G247-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

Fig 1: Locating Air Guide Pipe Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Loosen the hose clamps -3 and 5-.

Fig 2: Identifying Senors And Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Charge Air Pressure Sensor -G31- -arrow-.

-- Remove the bolts -1 and 4- and then remove the air duct pipe downward.

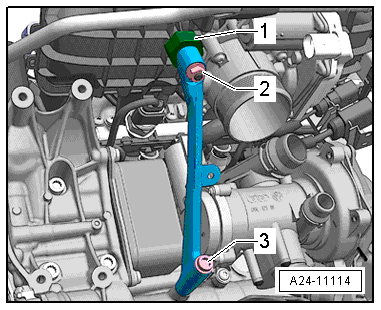

-- Remove the nut -2- and bolt -3- and then remove the intake manifold support.

Fig 3: Locating Intake Manifold Support Nut And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

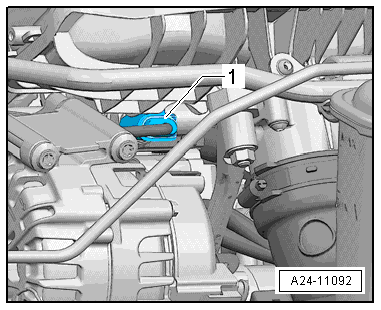

-- Remove the rubber bushing -1- for the intake manifold support.

-- Use the : T10118 -1- to release the connector from the Fuel Pressure Sensor -G247-.

Fig 4: Locating Fuel Pressure Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

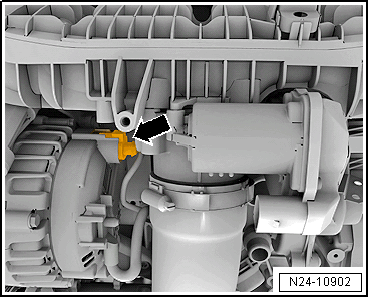

-- Remove the connector -arrow- from the generator, otherwise the socket can get hooked to the connector.

Fig 5: Locating Fuel Pressure Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen and remove the Fuel Pressure Sensor -G247- -1- using the : T40218
