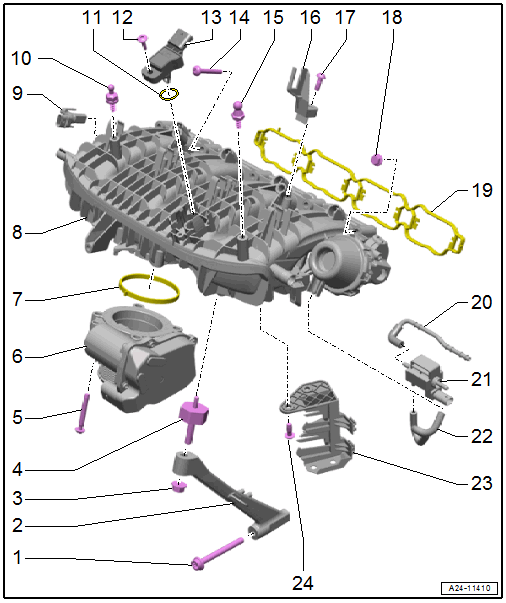

Overview - Intake Manifold
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 20 Nm
- Intake Manifold Support
- Nut
- 10 Nm
- Bonded Rubber Bushing
- 5 Nm
- Bolt
- 7 Nm
- Throttle Valve Control Module -GX3-
- With EPC Throttle Drive -G186-, EPC Throttle Drive Angle Sensor 1 -G187- and EPC Throttle Drive Angle Sensor 2 -G188-
- After removing, installing or replacing the Throttle Valve Control Module -GX3-, adapt it again to the Engine Control Module -J623-. Refer to "Guided Functions". Refer to Vehicle Diagnostic Tester.
Removing and Installing. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .
- Seal
- Replace after removing.
- Intake Manifold
- Removing and Installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- Intake Manifold Runner Position Sensor -G336-
- To remove bend back the mounting tab and remove the potentiometer from the intake manifold.
- Ball Pin
- 5 Nm
- For the engine cover
- O-Ring
- Replace after removing.
- Bolt
- 2.5 Nm
- Intake Manifold Sensor -GX9-
Consists of:
- Intake Air Temperature Sensor -G42-
- Manifold Absolute Pressure Sensor -G71-
- Removing and Installing. Refer to Intake Manifold Sensor -GX9-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Tighten diagonally in multiple steps
- Ball Pin
- 5 Nm
- For the engine cover
- Bracket
- For the connector
- Bolt
- 5 Nm
- Nut
- 9 Nm
- Tighten diagonally in multiple steps
- Seal
- Replace after removing.
- Vacuum Hose
- Intake Manifold Runner Control Valve -N316-
- Remove the intake manifold to remove. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- Vacuum Hose
- Bracket
- For the connectors
- Bolt
- 5 Nm
