Fuel Rail, Removing And Installing: Removing

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Disconnect all connectors from the fuel injectors.

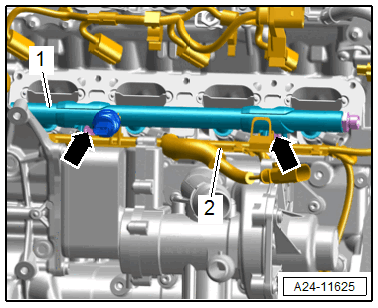

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fuel rail -1- with the wiring duct -2- from the fuel injectors.

-- Free up the wiring duct.
