Display And Control Head Rear Section, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the display control head front section. Refer to DISPLAY AND CONTROL HEAD FRONT SECTION, REMOVING AND INSTALLING .
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Push the retainer -5- to the side.

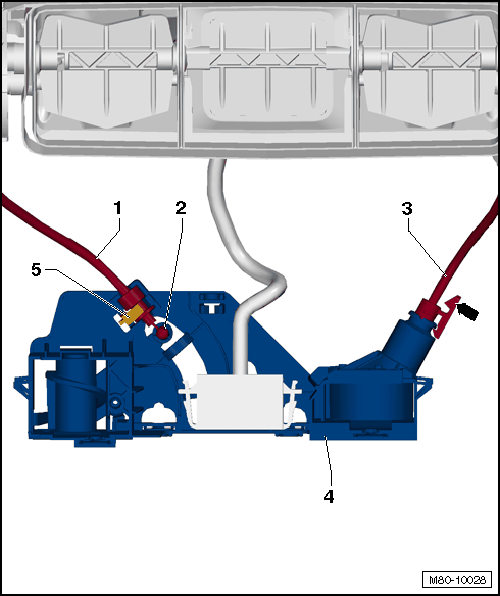

Fig 1: Identifying Release Cable, Adjusting Lever, Flexible Shaft And Display Control Head Rear Section
-- Remove the release cable -1- from the retainer and the adjusting lever -2-.
-- Release the flexible shaft -3- retainer -arrow- and then remove it.
-- Remove the display control head rear section -4- from the vehicle.
