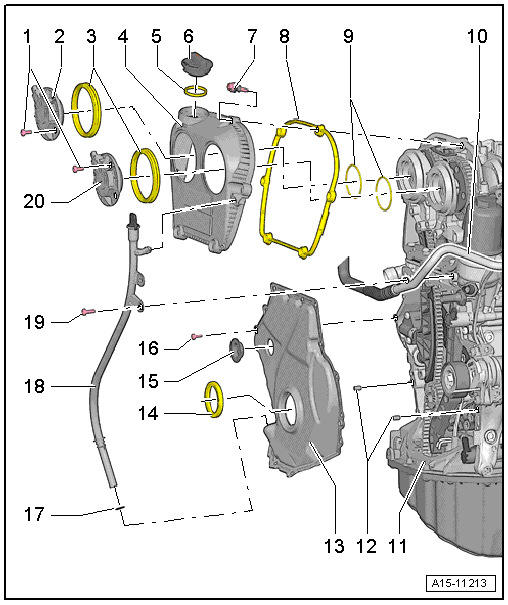

Overview - Timing Chain Cover
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 9 Nm
- Exhaust Camshaft Adjustment Valve 1 -N318-
- Seals
- To replace the cover must be removed.
- Upper Timing Chain Cover
- Removing and Installing. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
- Cap
- An extension can be installed between the cap and the cover
- Bolt
- 9 Nm
- Tightening sequence
- Seal
- Replace if damaged
- O-Ring
- Always replace
- Coat with engine oil
- Not Installed
- Engine
- Alignment Pin
- Centering the cover
- Lower Timing Chain Cover
- With shaft seal
- Replacing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
- Shaft Seal
- For the vibration damper
- Replacing. Refer to VIBRATION DAMPER SEAL, REPLACING .
- Plugs
- Always replace
- Bolt
- Always replace
- Tightening sequence. Refer to Installing - Position the cover immediately and tighten the bolts in the sequence shown. .
- O-Ring
- Always replace
- Coat with oil before assembly
- Oil Dipstick Tube
- Bolt
- 9 Nm
- Camshaft Adjustment Valve 1 -N205-
- Removing and installing
