Pistons, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine and secure to the : VAS6095A . Refer to ENGINE, SECURING TO ENGINE AND TRANSMISSION HOLDER .

-- Remove the cylinder head. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .

-- Remove the oil pan upper section. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .

-- Label the installation position and the piston allocation to the cylinder.

-- Mark installation position and allocation of the connecting rod cylinder ) OVERVIEW - PISTONS AND CONNECTING ROD - List Item: Connecting Rod.

-- Remove the connecting rod bearing cap and remove the piston and connecting rod upward.

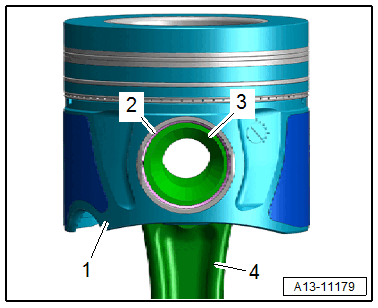

-- Remove the circlip -2- from the piston pin eye.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the piston pin -3- using the : VW 222A .

NOTE:

If difficult to move, heat the pistons to approximately 60 °C (140 °F).
