Drive Plate, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING .

: VW558 , Preparing:

-- Tighten the M8x40 hex bolt -A- with a hex nut on the : VW558 .

Fig 1: Identifying Flywheel Lock Adapter -VW 558- And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Drive Plate, Loosening and Tightening:

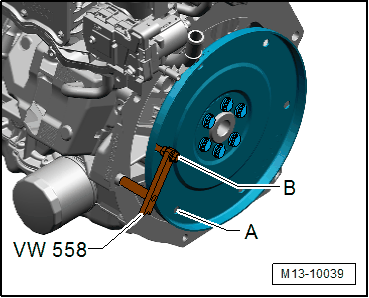

-- Insert the : VW558 into the cylinder block and drive plate as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Counterhold tool installation position: -A- to loosen, -B- to tighten.
