Striker, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear lid catch cover inside the lock carrier cover.

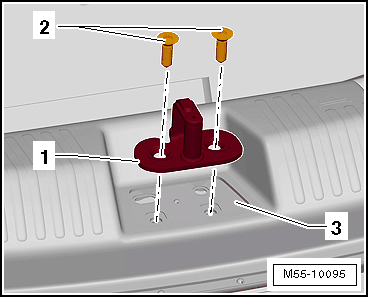

Fig 1: Identifying Rear Lid Latch Components
GWWM55-10095Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2- and remove the catch -1- from the lock carrier -3-.
