Side Adjusting Buffer and Stop, Removing and Installing

Removing

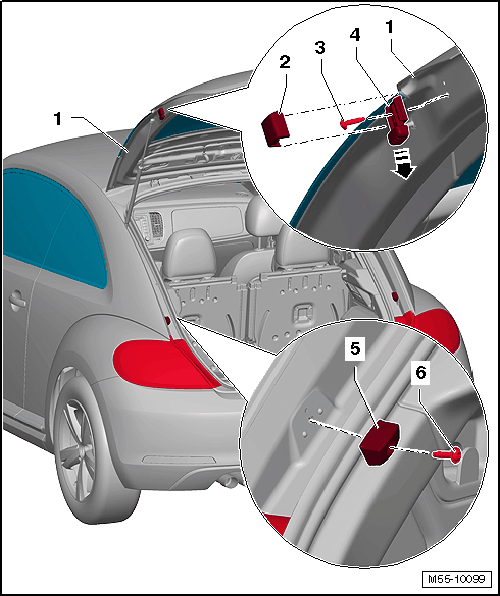

Fig 1: Identifying Side Adjusting Buffer And Stop

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the cap -2- from the adjusting buffer -4-.

-- Remove the bolt -3- and remove the adjusting buffer -4- from the rear lid -1-.

-- Remove the bolt -6- and remove the stop -5- from the side panel.

Installing

Fig 2: Identifying Side Adjusting Buffer And Stop

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the stop -5- to the side panel and install the bolt -6-.

-- Attach the adjusting buffer -4- to the rear lid -1- and install the bolt -2-.

-- Unclip the cap -2- from the adjusting buffer -4-.
