Rear Lid Seal, Removing And Installing, Sedan: Installing
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

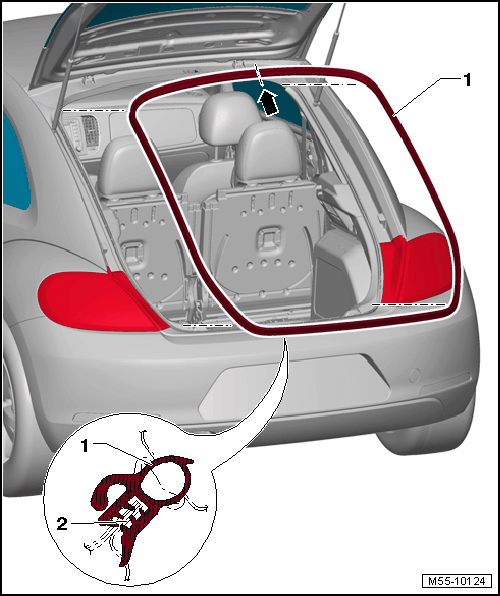

-- Line up the rear lid seal -1- at the top and in the center at the with point where it will be vulcanized -arrow-.
-- Press the seal -1- onto the body flange -2- evenly.
