Overview - Rear Lid, Convertible: Hinge

WARNING: This page is about a different variant/trim than selected.
NOTE:

The gas-filled strut is not shown in the illustration.

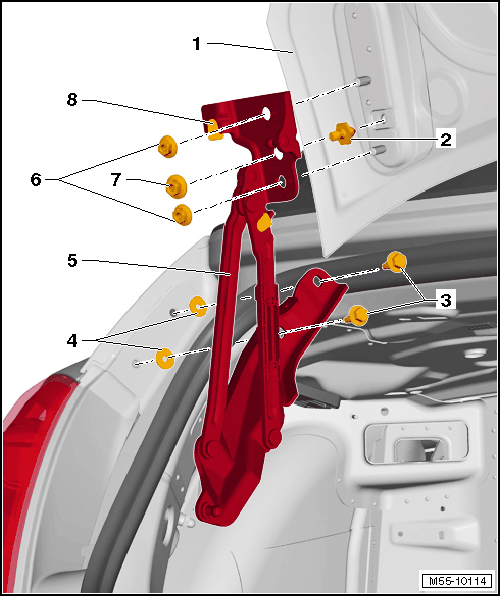

Fig 1: Locating Rear Lid Hinge Components
GWWM55-10114Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Lid
  2. Centering Pins
    • Maintains the basic setting when removing the rear lid.
  3. Bolt
    • 24 Nm
  4. Sealing Washer
  5. Hinge
  6. Nut
    • 24 Nm
  7. Centering Pin Nut
    • 4 Nm
  8. Stop Buffer
