Gas-Filled Strut, Removing And Installing: Installing

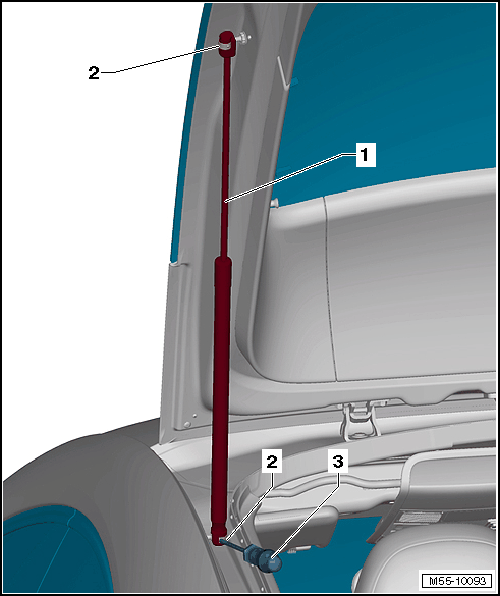

Fig 1: Identifying Gas Filled Strut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The spring clips -2- are pushed over the ball socket in the gas-filled strut -1-.
• The ball stud is installed, tightening specification: 20 Nm + 45°.

-- Push the gas-filled strut ball socket -1- onto the ball stud until the ball socket clicks into place on the ball stud.
