Support Rod, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

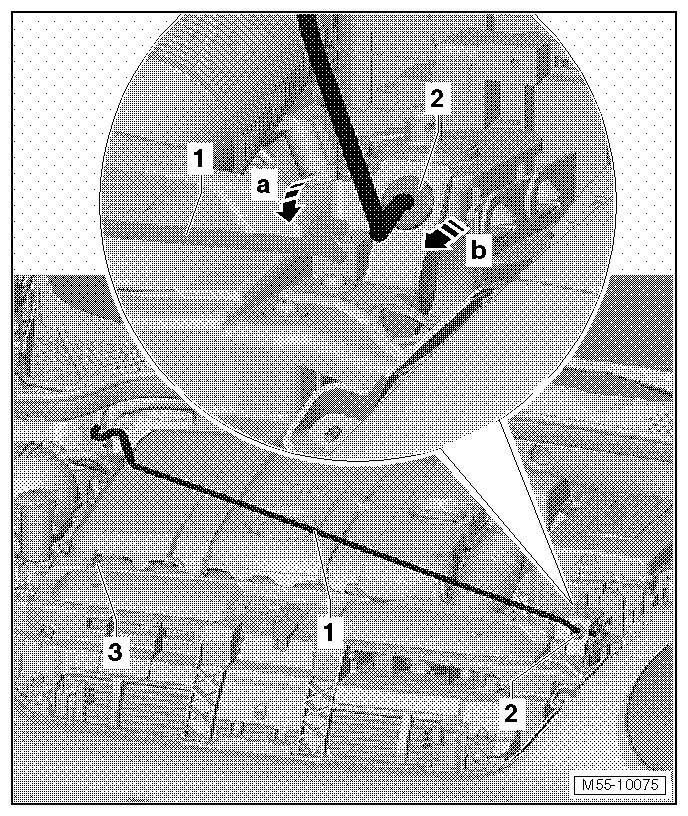

Fig 1: Identifying Support Rod

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the hood.

-- Move in direction of -arrow a- the support rod -1- forward.

-- Remove the support rod -1- from the rubber grommet -2- in direction of -arrow b-.
