Support Rod, Removing And Installing: Installing

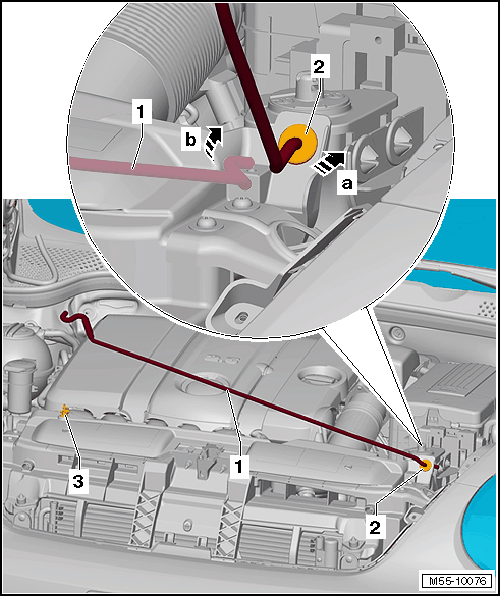

Fig 1: Identifying Support Rod

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the mount -3- for damage and replace if necessary.

-- Install the support rod -1- into the rubber grommet -2- in direction of -arrow a-.

-- Move the support rod -1- back to the lock carrier in direction of -arrow b-.
