Assembling the Release Cable Coupling

-- Install the ball -1- on the end of the cable into the ball cup inside the coupling -2- in direction of -arrow a-.

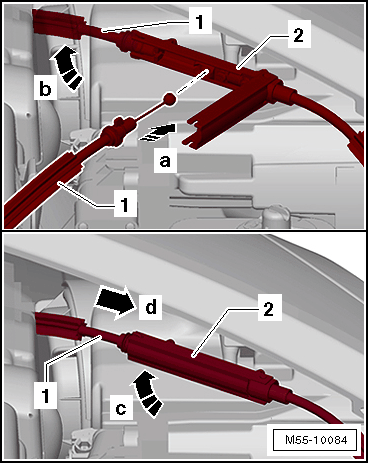

Fig 1: Connecting Release Coupling

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the release cable -1- into the release cable coupling -2- in direction of -arrow b-

-- Close the release cable coupling -2- in direction of -arrow c-.

-- Slide the release cable -1- slightly into the release cable coupling -2- -arrow d- until the release cable locks into place.

-- Clip the release cable coupling into the bracket above the headlamp on the driver side.

NOTE:

Make sure the grommets -2 and 3- are secure when installing the release cable -1-.

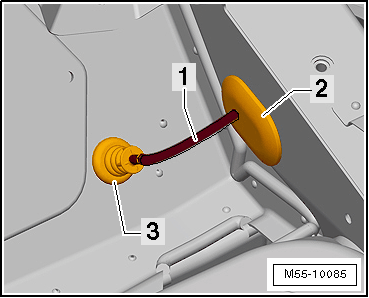

Fig 2: Identifying Grommets And Release Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Before closing the hood, make sure the hood release lever and the cable are working correctly.
