Insulation, Removing And Installing: Removing

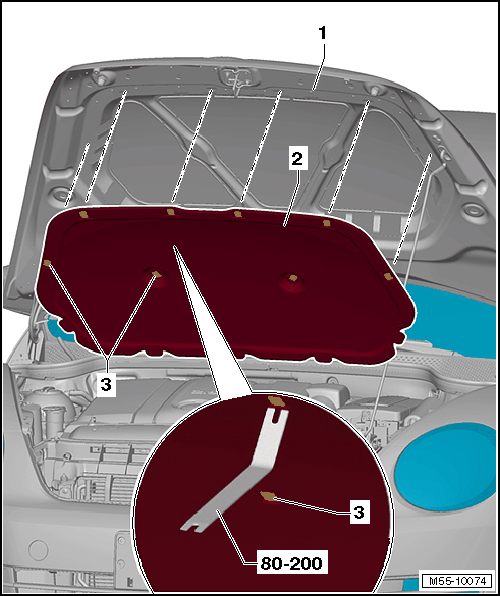

Fig 1: Identifying Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clips -3- (quantity: 8) from the hood -1- with the :80-200  .

-- Remove the damper -2- from the oblong holes in the hood -1-.
