Hood, Removing And Installing: Removing

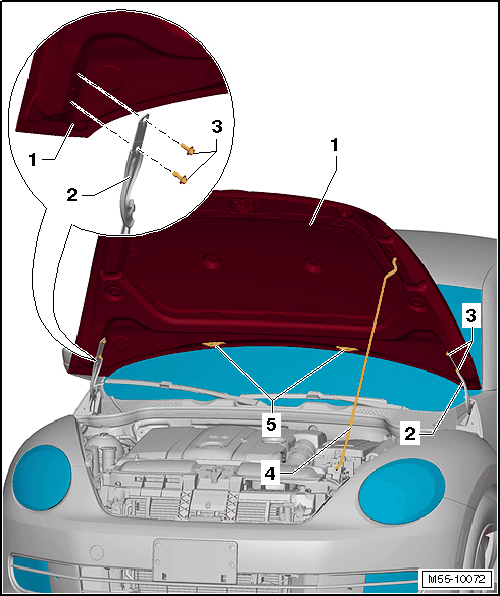

Fig 1: Identifying Hood Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the spray nozzles -5-. Refer to WASHER NOZZLES, REMOVING AND INSTALLING (CONVERTIBLE) .

-- Remove the line for the spray nozzle and the grommet from the hood -1-.

-- Loosen the left and right bolts -3- on the hinge -2- (do not remove the bolts).

A second technician is required for the rest of the removal procedure.

-- Remove the support rod -4- from the hood.

-- First remove the bolts -3- and remove the hood -1- from the hinges -2-.
