Hinges, Removing And Installing: Removing

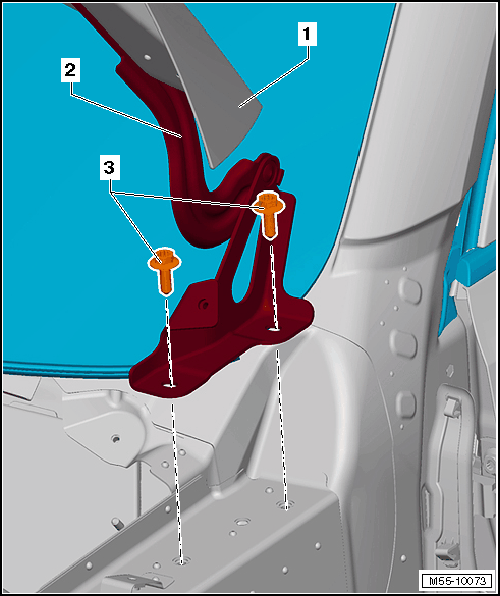

Fig 1: Identifying Hood Hinge Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hood -1-. Refer to HOOD, REMOVING AND INSTALLING .

-- Remove the front upper fender. Refer to FENDER, REMOVING AND INSTALLING .

-- Remove the bolts -3-.

-- Remove the hinge -2-.
