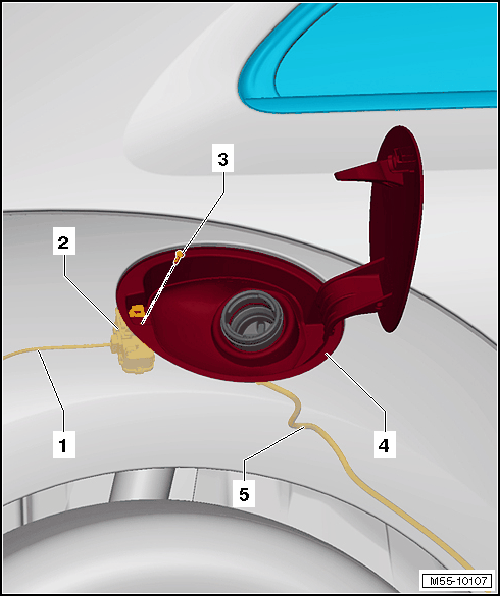

Overview - Fuel Filler Door Unit
WARNING: This page is about a different variant/trim than selected.
- Connector
- For Fuel Filler Door Lock Motor -V155-
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to ADJUSTING ELEMENT, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Fuel Filler Door Unit
- Removing and Installing. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .
- Water Drain Hose
- Routed between the wheel housing and the wheel housing liner
