Component Location Overview - Transmission Control

WARNING: This page is about a different variant/trim than selected.

Electrical and Electronic Components and Component Locations

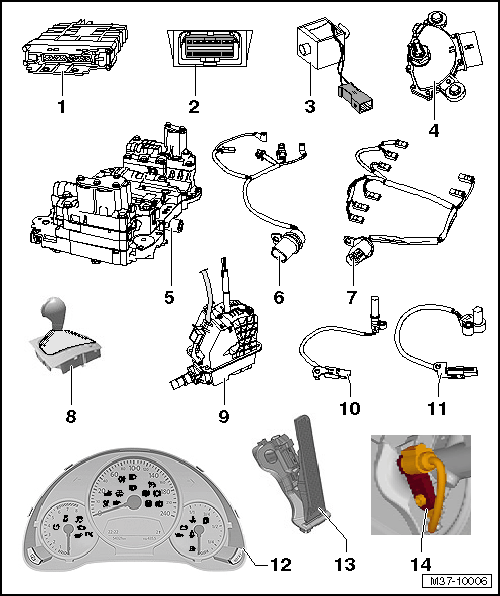

Fig 1: Transmission Control Component Parts
GWWM37-10006Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Transmission Control Module -J217-
    • Component location. Refer to Fig 2.
    • Can be checked in "Guided Fault Finding  " using the Vehicle Diagnostic Tester.
  2. Diagnostic Connection
    • Component location: the diagnostic connection is located under the driver side storage compartment on the left
  3. Shift Lock Solenoid -N110-
    • Component location: is integrated permanently in the selector mechanism and cannot be replaced separately
    • Can be checked in "Guided Fault Finding  " using the Vehicle Diagnostic Tester.
  4. Multifunction Transmission Range Switch -F125-
  5. Valve Body
    • Component location. Refer to Fig 4.
    • The components can be checked in "Guided Fault Finding  " using the Vehicle Diagnostic Tester.
  6. Sensor Wiring Harness
  7. Solenoid Valve Wiring Harness
  8. Selector Mechanism Cover with Selector Lever Scale Illumination Bulb -L101-
  9. Selector Lever Sensor System Control Module -J587- with Selector Lever -E313-, Tiptronic Switch -F189- and Selector Lever Park Position Lock Switch -F319-
    • Component location: The components are permanently integrated in the selector mechanism circuit board and cannot be replaced separately.
    • The components can be checked in "Guided Fault Finding  " using the Vehicle Diagnostic Tester.
    • The selector mechanism must be replaced if a component is faulty. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
  10. Transmission Input Speed Sensor -G182-
  11. Transmission Output Speed Sensor -G195-
  12. Transmission Range Display -Y6-
  13. Kick Down Switch -F8-
    • Not a separate component, the Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185- assume the function, both are integrated in the accelerator pedal module; for the component location, refer to Fig 9.
    • Can be checked in "Guided Fault Finding  " using the Vehicle Diagnostic Tester.
  14. Brake Lamp Switch -F-
    • Component location. Refer to Fig 10.
    • Can be checked in "Guided Fault Finding  " using the Vehicle Diagnostic Tester.

Transmission Control Module -J217-

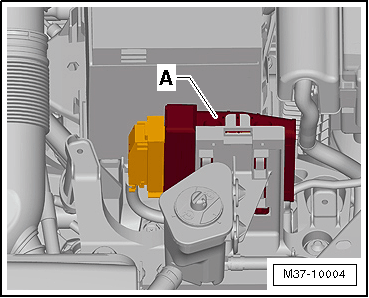

Fig 2: Identifying Transmission Control Module, Jetta MY 11
GWWM37-10004Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: The control module -A- is located in the engine compartment at the front left near the battery.

-- Unclip the Control Module -A- from the bracket and remove it upward.

-- Release the connector and remove it from the Control Module.

Install in reverse order of removal.

Multifunction Transmission Range SwitchF125

Fig 3: Identifying Multi-Function Transmission Range (TR) Switch F125
GWWN37-10108Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: The multifunction transmission range switch is located on the top side of the transmission.

Valve Body

Fig 4: Identifying Valve Body
GWWN37-10105Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: the valve body is bolted onto the bottom of the transmission housing and is covered by the transmission fluid pan.

The Solenoid Valve 1 -N88-, Solenoid Valve 2 -N89-, Solenoid Valve 3 -N90-, Solenoid Valve 4 -N91-, Solenoid Valve 5 -N92-, Solenoid Valve 6 -N93-, Solenoid Valve 9 -N282- and Solenoid Valve 10 -N283- are secured on the valve body.

Sensor Wiring Harness

Fig 5: Identifying Wiring Harness, 8-Pin
GWWN37-10109Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: the wiring harness is secured to the valve body in the transmission.

Solenoid Valve Wiring Harness

Fig 6: Identifying Wiring Harness, 14-Pin
GWWN37-10110Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: the wiring harness is secured to the valve body in the transmission.

Transmission Input Speed Sensor -G182- and Transmission Output Speed Sensor -G195-

Fig 7: Identifying Transmission Input Speed (RPM) Sensor G182 And Output Speed (RPM) Sensor G195
GWWN37-10112Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: the sensors are installed above the valve body in the transmission housing.

1 - Transmission Input Speed Sensor -G182-

2 - Transmission Output Speed Sensor -G195-

Transmission Range Display -Y6-

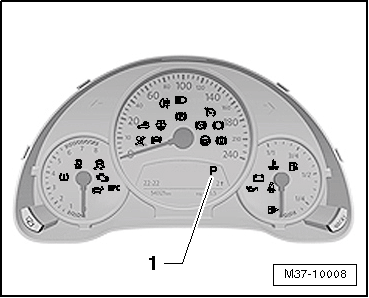

Fig 8: Identifying Transmission Range Display -Y6-
GWWM37-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: inside the instrument cluster -1-.

Kick Down Switch -F8-

Fig 9: Accelerator Pedal Position Sensor -G79- and the Accelerator Pedal Position Sensor 2 -G185- Components Location
GWWA20-1087Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A programmed value of the Accelerator Pedal Position Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- (integrated in accelerator pedal module) is stored in the engine control module as a kick-down signal.

Accelerator Pedal Module, Removing and Installing. Refer to OVERVIEW - ACCELERATOR PEDAL MODULE .

Brake Lamp Switch -F-

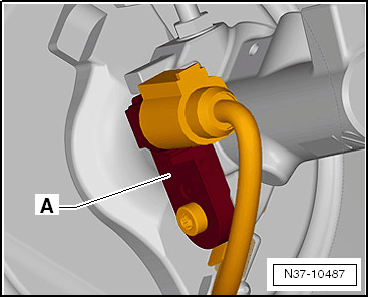

Fig 10: Brake Lamp Switch -F-
GWWN37-10487Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: The Brake Lamp Switch -A- is located on the brake master cylinder.

Brake Lamp Switch, Removing and Installing. Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING .
