Transmission Fluid Screen, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the transmission fluid pan. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .

-- Remove the transmission fluid screen bolts -arrows-.

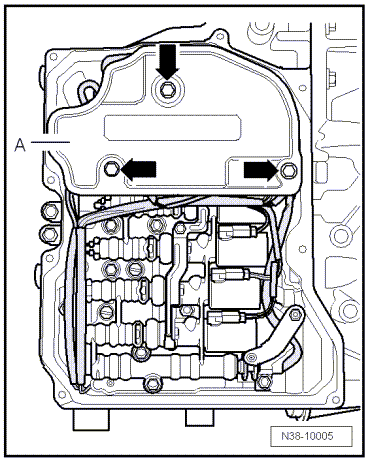

Fig 1: Identifying Oil Filter Bolts
GWWN38-10005Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the transmission fluid screen -A- from the valve body.
