Overview - Torque Converter

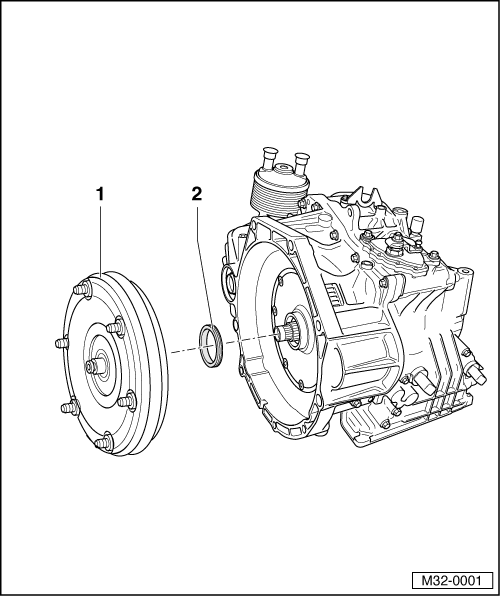

Fig 1: Overview Of - Torque Converter Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Torque Converter
   • Secure the torque converter from falling when the transmission is removed or during transport. Refer to Fig 2.
   • Removing and Installing. Refer to TORQUE CONVERTER, REMOVING AND INSTALLING .
   • Draining. Refer to TORQUE CONVERTER, DRAINING .
   • Checking. Refer to TORQUE CONVERTER, CHECKING .
2. Seal
   • For the torque converter
   • Replacing. Refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING .

Torque Converter, Securing from Falling Out

Fig 2: Converter Secured From Falling Out Using A Wire

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the torque converter using wire -A-, for example, to prevent it from falling when being transported.

Unsecured torque converters can slide out if the transmission is tipped.
