High Pressure Sensor -G65-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Disconnect the connector from the High Pressure Sensor -G65- -1-.

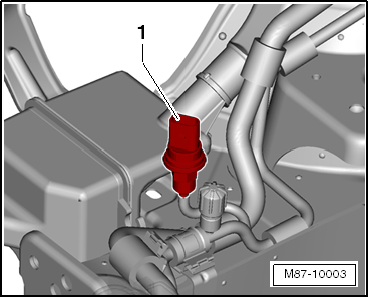

Fig 1: Identifying High Pressure Sensor At Refrigerant Pipe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Counterhold the refrigerant line with a suitable tool.

-- Remove the High Pressure Sensor -G65- -1-.
