Desiccant Bag/Dryer Cartridge, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Vehicles with Refrigerant R134a

-- Discharge the refrigerant circuit. Refer to REFRIGERANT CIRCUIT, DISCHARGING WITH A/C Service Station .

Vehicles with Refrigerant R1234yf

-- Discharge the refrigerant circuit. Refer to the appropraite service information .

CAUTION:

Danger or frostbite due to refrigerant coming out under pressure.

Frostbite on the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Extract refrigerant and open the refrigerant circuit immediately.

- If more than 10 minutes elapse after extracting the refrigerant and the refrigerant circuit was not opened, extract the refrigerant again. Evaporation can cause pressure to develop in the refrigerant circuit.

Continuation for All Vehicles

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the left front air duct. Refer to OVERVIEW - LOCK CARRIER .

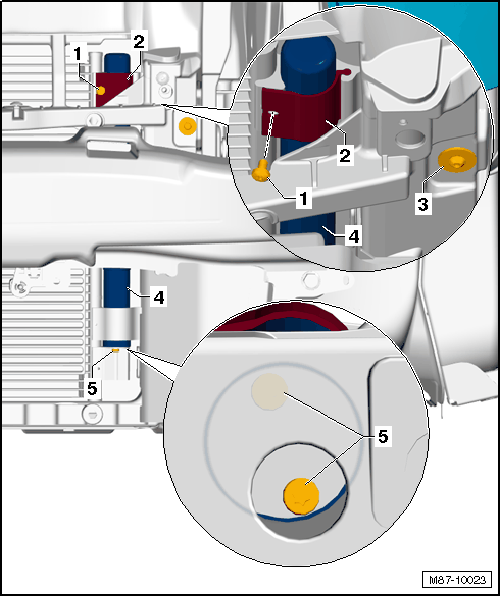

-- Remove the bolt -1-.

Fig 1: Identifying Screw, Bracket, Bolt, Dryer Cartridge And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the dryer cartridge -4- bracket -2-.

-- Remove the bolt -3-.

-- Remove the bolts -5-.

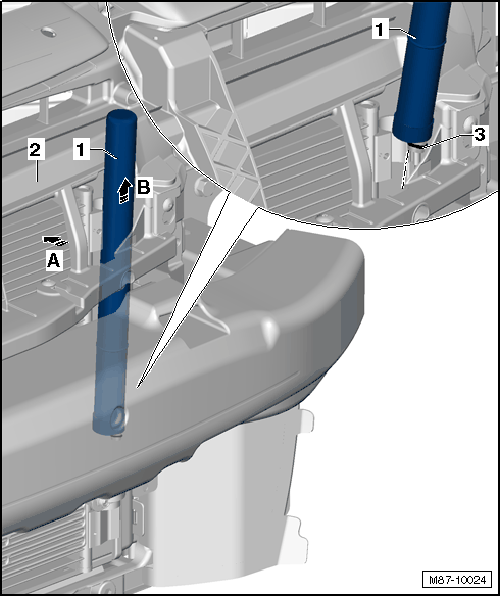

-- Remove the dryer cartridge -1- in the direction of -arrow B- from the lock carrier -2- at the same time turn the radiator for the coolant with the condenser slightly in the direction of -arrow A-.

Fig 2: Identifying Dryer Cartridge And Sealing Ring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Seal the dryer cartridge and condenser using : VAS6122 .
