Glove Compartment Cooling, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the hose for the glove compartment cooling -1- from the valve -3-.

-- Remove the hose for the glove compartment cooling -1- from the connection -2- on the heater and A/C unit.

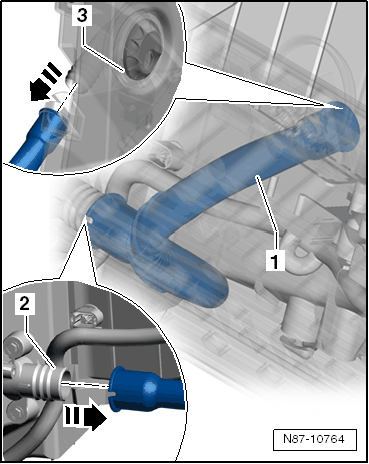

Fig 1: Identifying Hose For Glove Compartment Cooling, Connection And Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
