Fresh Air Blower Series Resistor with Fuse -N24-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Fresh Air Blower Series Resistor with Fuse -N24- is only installed on vehicles without an A/C system and on vehicles with a manual climate control system.
-- Remove the front passenger side footwell trim panel. Refer to Figure.

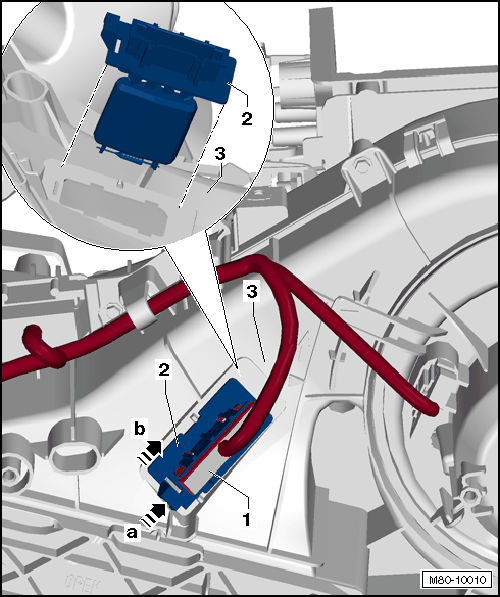

-- Disconnect the connector -1- from the Fresh Air Blower Series Resistor with Fuse -N24- -2-.
-- Push the retainer in the direction of -arrow A- and push the Fresh Air Blower Series Resistor with Fuse -N24- -2- in the direction of -arrow B-.
-- Remove the Fresh Air Blower Series Resistor with Fuse -N24- -2- from the heater and A/C unit -3-.
