Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .

-- Disconnect the connector -3- from the Fresh Air Blower Control Module -J126- -4-.

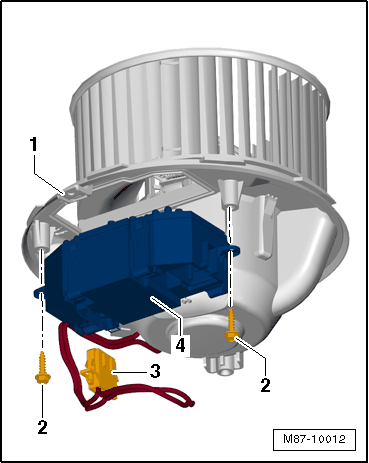

Fig 1: Identifying Fresh Air Blower Control Module With Connector And Bolts
GWWM87-10012Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2-.

-- Remove the Fresh Air Blower Control Module -J126- -4- from the Fresh Air Blower -V2- -1-.
