Fresh Air Blower -V2-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front passenger side footwell trim panel. Refer to Figure.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the Fresh Air Blower -V2- -1-.

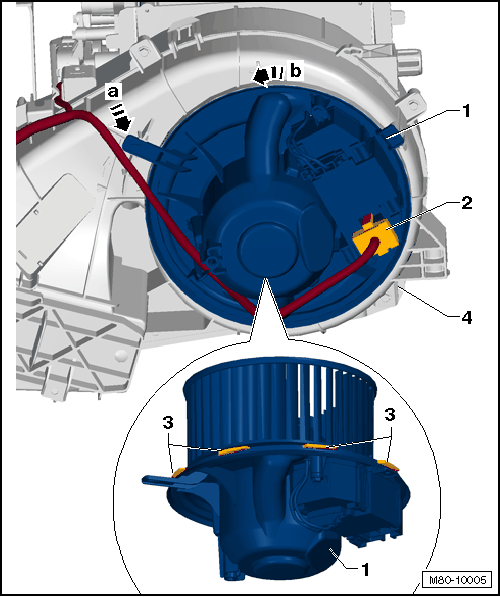

Fig 1: Identifying Fresh Air Blower Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release retainer -arrow a- and turn the Fresh Air Blower -V2- with the Fresh Air Blower Control Module -J126- -1- in the direction of -arrow B-. Release the retainers -3- by turning them.

-- Remove the Fresh Air Blower -V2- and the Fresh Air Blower Control Module -J126- -1- from the heater and A/C unit -4-.
