Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the right front footwell center console trim panel. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the Evaporator Temperature Sensor -G308- -1-.

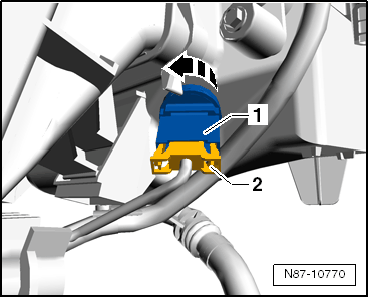

Fig 1: Identifying Connector And Evaporator Temperature Sensor
GWWN87-10770Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the Evaporator Temperature Sensor -G308- -1- 90° in the direction of -arrow- and remove it from the heater and A/C unit.
