Condensation Water Drain, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the right front footwell center console trim panel. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Loosen the carpet in the right footwell and remove it until the condensation water drain -1- can be seen.

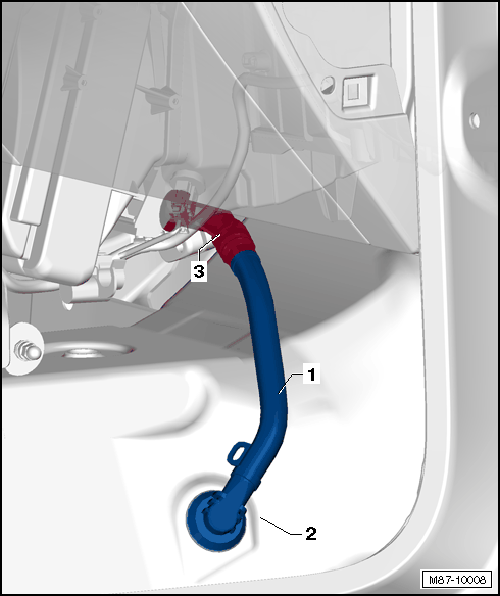

Fig 1: Identifying Condensation Water Hose
GWWM87-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the condensation water drain -1- from the connecting piece -3-.

-- Unclip the condensation water drain -1- and the valve from the body -2-.
