Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING, RHD: Removing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Only installed on vehicles with Diesel engine without auxiliary coolant heater.

The instrument panel is not pictured in order to enhance the illustration.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the front passenger side footwell trim panel. Refer to Figure.

-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Remove the left front footwell center console trim panel. Refer to CENTER CONSOLE SECURING BRACKET, REMOVING AND INSTALLING .

-- Remove the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

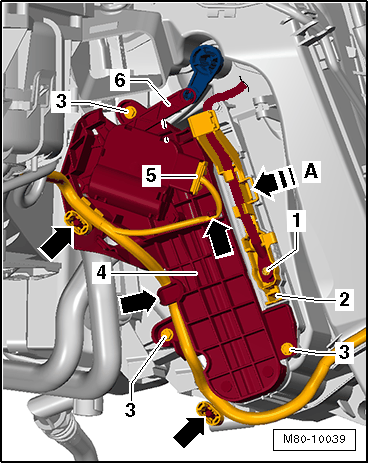

-- Release the flat terminal housing -2- in the -direction of the arrow A-.

-- Remove the flat terminal housing -2-.

-- Loosen the adjusting lever -6- from the temperature door drive.

-- Disconnect the connector -5-.

-- Disengage the wiring harness -arrows- from the heater core cover -4-.

-- Remove the bolts -3-.

-- Remove the heater core cover with the adjustment motor -4-.

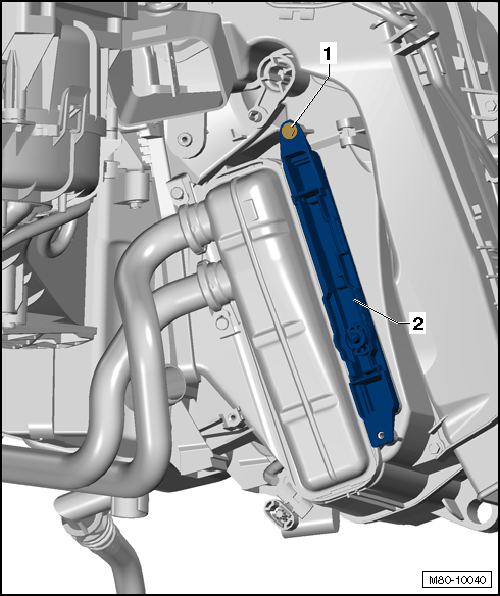

-- Remove the bolt -1- from the Auxiliary Heater Heating Element -Z35- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

There is a risk of burns by the metal surfaces on the auxiliary heater heating element. Heating elements can be very hot.

It is possible for the skin to be burned.

- Wear safety gloves.

- Never touch the metal surfaces of the heating element.

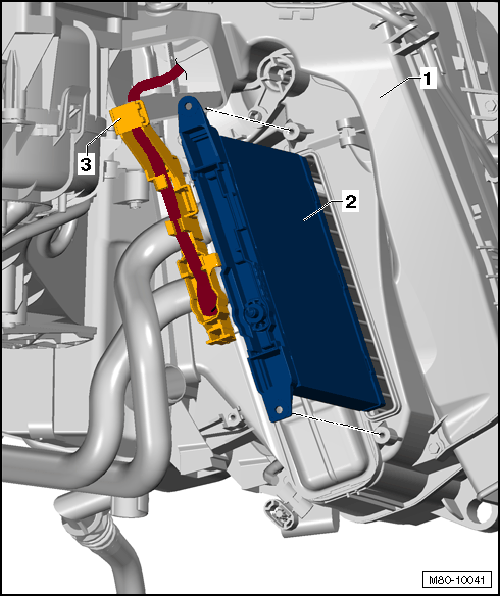

-- Move the flat terminal housing -3- to the side.

-- Remove the Auxiliary Heater Heating Element -Z35- -2- from the heater and A/C unit -1-.
